NextGenIndustrial Vibrator Tables for Concrete Compaction
NextGen Engineering Works designs and manufactures rugged, high-frequency vibrator tables engineered for paver block manufacturing and precast concrete plants. Built with reinforced ISMB channel bases, heavy-gauge steel deck plates, and calibrated unbalance motors, our tables eliminate honeycombing and ensure uniform density across every mould.
Eliminating Air Pockets in Zero-Slump Concrete
Precast paving blocks utilize dry, zero-slump concrete mixes with low water-cement ratios (typically 0.35 to 0.40). To reach target compressive strengths of M-35, M-40, or M-50, intense vibratory energy must fluidize the mix inside the mould, forcing microscopic air pockets to the surface while settling aggregate tightly.
A poorly balanced vibrator table creates "dead spots" where blocks remain porous, as well as "hot spots" that cause mould cracking. NextGen tables feature dynamically centered motor mountings and calibrated spring stiffness to deliver uniform, vertical-biased harmonics across the full table deck.
Fabricated Vibrator Table Units

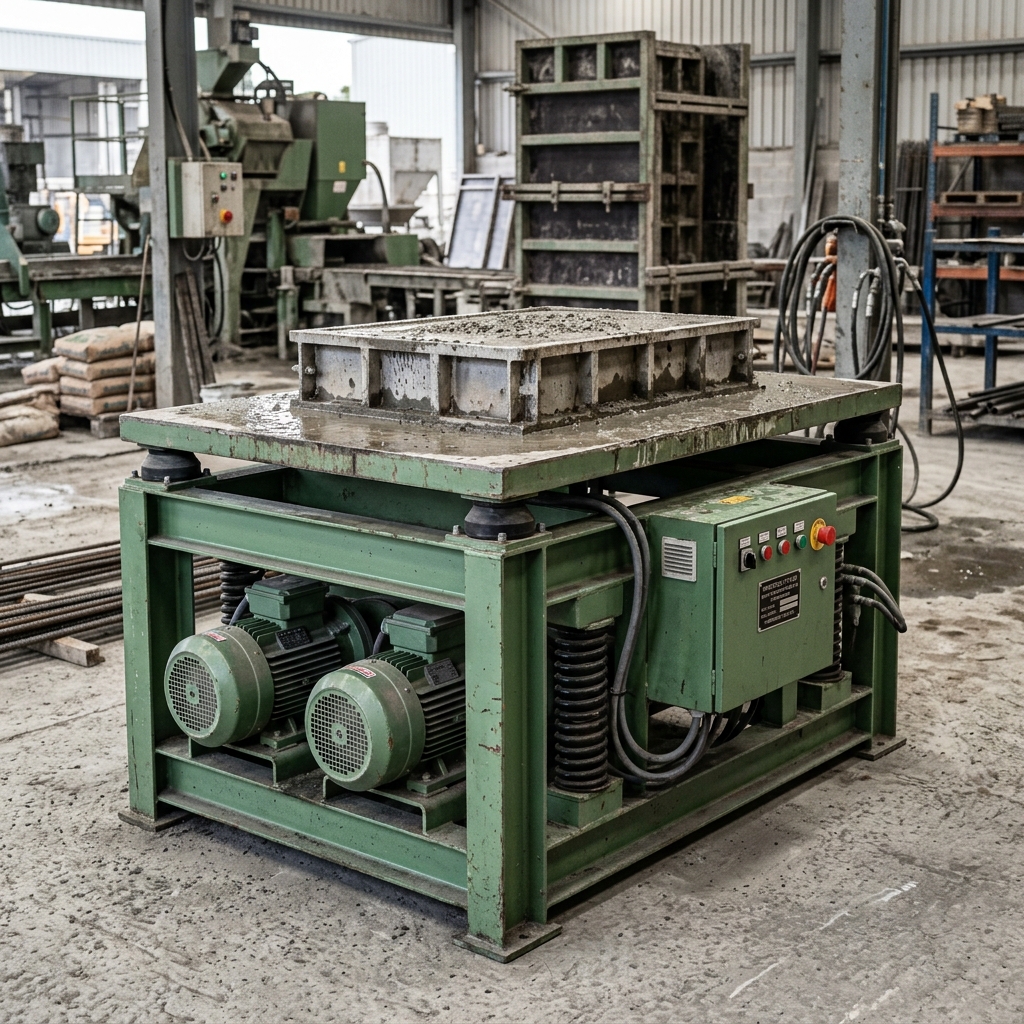

10×3 Ft Production Vibrator Table
Full plant-scale consolidation table with twin 2 HP motor mounts and 10 mm heavy-plate bed for high-volume paver plants.
Structural Channel Chassis
All-welded ISMC steel channels with gusseted spring pockets designed to eliminate chassis resonance and floor damage.
Spring Suspension & Motor Mount
Heavy compression spring clusters with safety retaining retainers providing smooth amplitude and minimal noise.
Applications Across Precast Operations
- Interlocking Paver Blocks: High-frequency compaction for 60 mm, 80 mm, and 100 mm paver moulds.
- Precast Tiles & Chequered Slabs: Level compaction of two-layer architectural tiles without disturbing color layer interface.
- RCC Fencing Posts & Boundary Wall Slabs: Extended long-bed vibrator tables ensuring concrete flows around dense rebar cages.
- Precast Drain Covers & Manhole Covers: Heavy structural consolidation for load-bearing civil infrastructure.
Available Customization Options
- Dual-Motor Setup: Synchronized counter-rotating unbalance motors creating pure linear vertical vibration.
- Integrated Roller Tracks: Low-friction steel rollers on table sides for sliding heavy filled moulds directly toward curing racks.
- Variable Frequency Drives (VFD): Electronic frequency control panel enabling operators to fine-tune vibration RPM for different mix designs.
- Single-Phase Adaptations: Heavy-duty single-phase capacitor-start motors for rural or remote installations without 3-phase grid power.
Standard Model Comparison
| Model Series | Deck Dimensions | Motor Power | Spring Cluster | Mould Capacity on Deck | Recommended Output |
|---|---|---|---|---|---|
| NVT-8025 (Standard) | 8 ft × 2.5 ft | 1.5 HP (3-Phase) | 6 Heavy Springs | 8 to 12 Paver Moulds | Up to 2,000 sq ft/day |
| NVT-1003 (Heavy Duty) | 10 ft × 3.0 ft | 2.0 HP (3-Phase) | 8 Heavy Springs | 14 to 18 Paver Moulds | Up to 3,500 sq ft/day |
| NVT-1003-D (Dual Drive) | 10 ft × 3.0 ft | Twin 1.5 HP (3.0 HP Total) | 8 Reinforced Springs | 16 to 20 Paver Moulds | Up to 4,500+ sq ft/day |
| NVT-Custom (Post Bed) | Up to 12 ft × 2.0 ft | 2.0 HP to 3.0 HP | 8 to 10 Springs | Post & Kerb Moulds | Project Specific |
Inquiry Checklist: What to Provide
When requesting a vibrator table quotation, having the following details ready enables immediate engineering confirmation:
- Target Daily Capacity: Estimated square feet of paving blocks or number of precast elements per shift.
- Electrical Supply: Available plant power supply (415V 3-Phase vs 230V Single-Phase).
- Mould Depth & Weight: Maximum mould depth (e.g. 60 mm, 80 mm, or 150 mm kerb stones) and gross concrete batch weight.
- Destination City: Nearest freight transport hub for consolidated logistics costing.
Vibrator Table FAQ
Our vibration motors feature adjustable eccentric weights at both ends of the rotor shaft. By altering the angular offset between the fixed and movable weight plates, you can increase or decrease the centrifugal vibration force from 20% to 100% capacity.
We use heavy-gauge oil-quenched spring steel coils designed for infinite fatigue cycles under rated load. In typical production environments, springs operate for 2 to 3+ years before replacement is advised.
Yes. We manufacture custom single-phase versions fitted with high-torque 230V vibration motors specifically tailored for rural workshops or sites without 3-phase grid power.
Yes. While the springs isolate most vibration from the subframe, we recommend bolting the base channel feet to a 4-inch concrete pad using expansion anchor bolts to eliminate lateral travel and ensure operator safety.
